How Do Energy Storage Systems Work?

Energy grid volatility creates significant financial exposure for modern businesses. You can no longer rely solely on passive power consumption. Understanding energy storage mechanics is an urgent prerequisite for mitigating energy costs and ensuring operational resilience. Highly engineered Energy Storage Systems function as integrated hardware and software architectures. They capture electricity, hold it safely, and dispatch it strategically.

This guide bridges technical operations with procurement realities. You will learn how to evaluate these installations based on performance, safety, and long-term financial viability. We explore core components, solar integration setups, and crucial deployment risks. By understanding these technical foundations, decision-makers can confidently select architectures tailored to their facility's unique load profiles and operational demands.

Key Takeaways

  • System Architecture dictates ROI: An ESS is more than a battery; the integration of the Inverter (PCS) and Energy Management System (EMS) determines efficiency and cost-savings.
  • Solar integration requires specific configurations: Choosing between AC-coupled and DC-coupled architectures drastically impacts a solar energy storage system's efficiency and retrofit feasibility.
  • Safety and compliance are baseline criteria: Meeting UL 9540 and NFPA 855 standards is non-negotiable for commercial deployment and insurance compliance.
  • Procurement goes beyond capacity: Evaluating an ESS requires balancing upfront costs against cycle life, degradation curves, and warranty stipulations.

The Core Cycle: The Mechanics Behind Energy Storage Systems

To grasp the commercial utility of battery arrays, we must first examine their basic operational loop. The fundamental process relies on three distinct phases. Each phase dictates how efficiently a facility can reduce utility expenses and maintain power during outages.

  1. Charge (Capture & Conversion): The cycle begins when the array draws power. It pulls electricity from the local grid during off-peak hours when rates drop. Alternatively, it captures surplus electricity from on-site generation, like solar arrays. Because grid power flows as Alternating Current (AC), the Power Conversion System (PCS) must convert it. It transforms the AC power into Direct Current (DC) before it enters the battery cells. Efficient conversion prevents excessive energy bleed during this step.
  2. Store (Chemical & Thermal Management): Once converted, the DC energy rests electrochemically within the battery modules. Electricity generation creates heat. Consequently, storing it densely requires rigorous temperature control. A robust thermal management system—typically using liquid cooling or specialized HVAC units—operates continuously. It maintains optimal cell temperatures. Proper cooling prevents accelerated degradation and mitigates severe safety risks.
  3. Discharge (Dispatch & Optimization): The final step reverses the initial process. The facility demands power, prompting the system to act. The PCS converts the stored DC power back into AC power. The facility then consumes this AC power seamlessly. The Energy Management System (EMS) triggers this dispatch automatically. It performs peak shaving by deploying power during expensive utility periods. It also executes load shifting based on real-time facility demand.

Mastering this core cycle allows operators to align equipment capabilities directly with facility energy profiles. Efficient charging and discharging directly translate to higher utility savings.

Anatomy of a Commercial ESS: Mapping Components to Business Outcomes

An industrial energy setup is not just a large battery. It functions as a complex ecosystem of specialized components. Every part plays a distinct role in safety, efficiency, and operational success. When evaluating Energy Storage Systems, you must assess these internal elements carefully.

Battery Modules & Chemistry

The battery modules form the physical core of the storage capacity. Industry standards predominantly rely on two lithium-ion chemistries: Lithium Iron Phosphate (LFP) and Nickel Manganese Cobalt (NMC).

Evaluation lens: LFP offers a significantly superior safety profile. It resists thermal runaway far better than NMC. Furthermore, LFP provides a longer cycle life. This longevity makes LFP the undisputed current standard for stationary commercial storage applications.

Chemistry Feature Lithium Iron Phosphate (LFP) Nickel Manganese Cobalt (NMC)
Cycle Life High (Typically 6,000+ cycles) Moderate (Typically 2,000 - 4,000 cycles)
Thermal Stability Excellent (Highly resistant to fire) Lower (Requires stricter cooling)
Energy Density Moderate (Requires a larger footprint) High (Compact footprint)
Primary Commercial Use Stationary commercial storage Electric vehicles, space-constrained sites

Power Conversion System (PCS) / Bi-directional Inverters

The PCS acts as the critical gateway. It sits between the battery modules, the facility load, and the external utility grid. It pushes power in both directions, switching between AC and DC.

Evaluation lens: You must scrutinize round-trip efficiency ratings here. Minor inefficiencies compound over years of operation. Additionally, analyze response times. Fast switching is absolutely critical for seamless backup power during sudden grid failures.

Battery Management System (BMS)

The BMS operates at the micro-level. It continuously monitors individual cell voltage, current output, and localized temperatures. It balances the charge across thousands of individual cells.

Evaluation lens: Consider the BMS your primary safety failsafe. If a cell exhibits abnormal temperatures, the BMS immediately isolates it. This action stops thermal runaway before it starts, protecting the broader facility.

Energy Management System (EMS)

While the BMS protects the battery, the EMS serves as the overarching "brain." It uses predictive algorithms to decide exactly when to charge or discharge. It factors in utility rate schedules, weather forecasts, and real-time facility load data.

Evaluation lens: Always demand an open-architecture EMS. Closed systems force vendor lock-in, limiting future upgrades. An open system seamlessly integrates with your existing Building Management Systems (BMS/BAS) for holistic facility control.

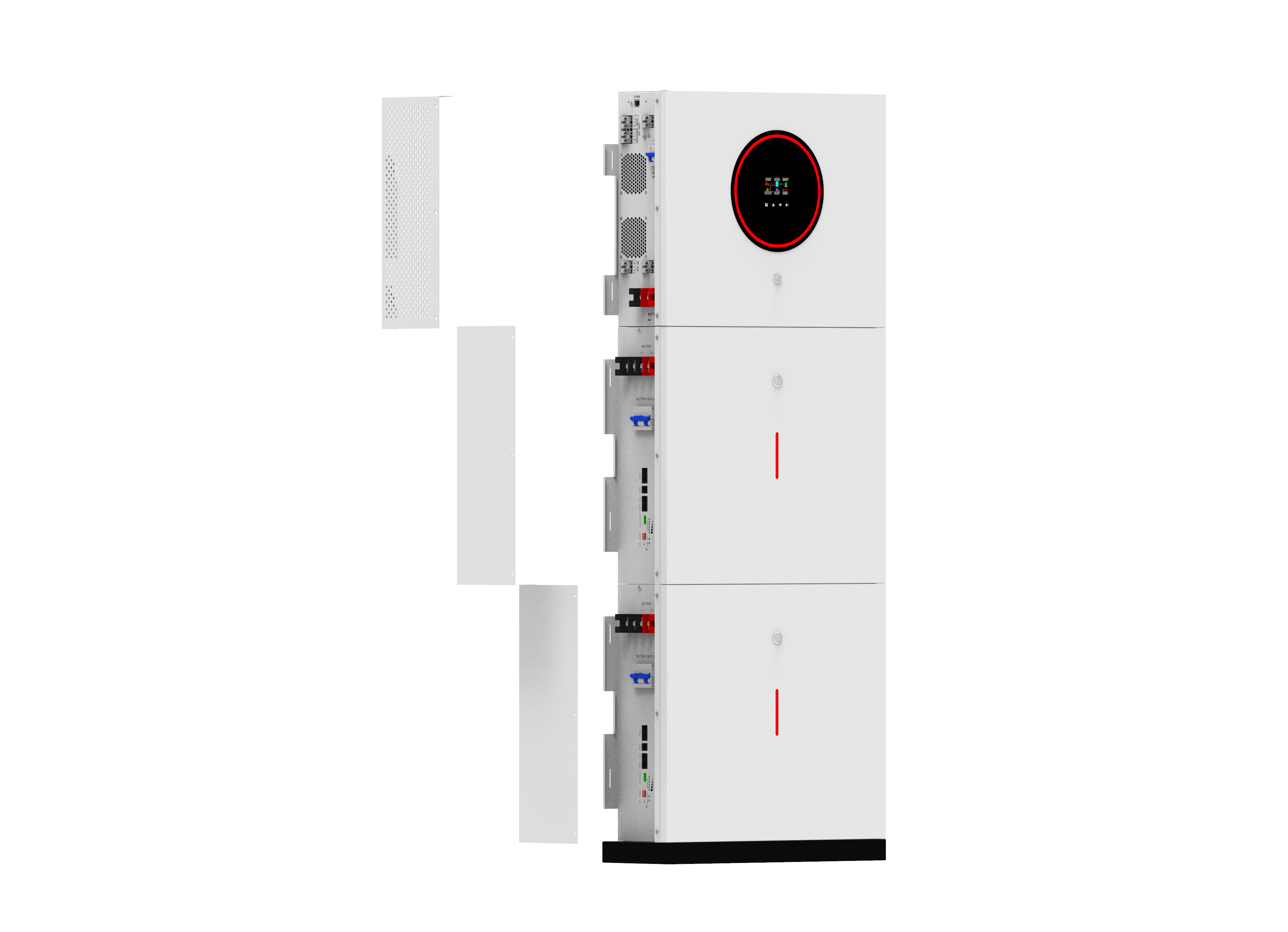

Diagram showing the architecture and components of commercial energy storage

How a Solar Energy Storage System Operates

Standalone solar generation rarely meets the demands of a modern commercial facility. A robust Solar Energy Storage System solves this inherent limitation by synchronizing generation with actual usage.

The Intermittency Problem

Solar panels only produce power when the sun shines. Unfortunately, peak solar generation usually occurs midday. However, peak facility demand often spikes in the late afternoon or early evening. Without storage, valuable midday power goes to waste or gets sold back to the grid for pennies. Storage bridges this gap. It banks midday solar energy and deplos it when utility rates peak later in the day.

DC-Coupled Systems

In a DC-coupled architecture, the solar panels and the batteries share a single, unified inverter. The DC power from the solar array flows directly into the DC battery without needing AC conversion first.

  • Mechanism: Solar and storage connect behind a single hybrid inverter.
  • Commercial reality: This setup proves highly efficient due to fewer conversion losses. It effectively captures "clipped" solar energy that an inverter might otherwise reject during peak production. We strongly recommend this configuration for new, ground-up solar and storage installations.

AC-Coupled Systems

An AC-coupled setup utilizes separate inverters for the solar array and the battery array. The components sync up at the main AC electrical panel rather than sharing a direct DC link.

  • Mechanism: Solar uses a standard string inverter. The battery uses its own bi-directional PCS. They meet at the AC switchgear.
  • Commercial reality: This architecture suffers slightly lower round-trip efficiency because power converts from DC to AC, and back to DC. However, it remains highly scalable. It stands as the preferred, most cost-effective architecture for retrofitting storage onto an existing solar array.

Evaluation Criteria: Selecting the Right System for Your Facility

Procurement teams often struggle to compare competing proposals. Marketing materials can obscure technical realities. Use the following framework to align your capital investments with tangible operational outcomes.

Power (kW) vs. Capacity (kWh)

Sizing a system incorrectly destroys your expected return on investment. You must understand the difference between power and capacity. Think of power (kW) as a water hose's diameter, while capacity (kWh) represents the water tank's size.

  • High Power Needs: Do you need short bursts of immense power? If your goal is to reduce expensive utility demand charges, you need a system sized with a high kW rating. It must deploy energy quickly during a 15-minute demand spike.
  • High Capacity Needs: Do you need extended backup power for critical loads? If operational resilience during prolonged grid outages is the goal, prioritize high capacity (kWh). You need a larger energy reservoir to sustain operations over several hours.

Safety Standards & Compliance

Commercial safety requirements are incredibly stringent. Navigating fire codes is arguably the most challenging aspect of deployment. You must verify strict industry certifications.

  • UL 1973: Certifies the safety of the individual battery cells and modules.
  • UL 9540: Certifies the safety of the entire integrated system, including the PCS and thermal management.
  • NFPA 855: Dictates the fire safety code for installation, defining proper clearances and fire suppression requirements.

Risk note: Never compromise on these standards. Non-certified systems will absolutely face permitting rejection from local authorities. Furthermore, commercial insurance providers will deem uncertified installations uninsurable, creating massive liability risks.

Long-Term Financial Viability vs. Upfront Capex

We strongly advise against buying hardware solely based on the lowest upfront capital expenditure (Capex). Cheap systems often hide expensive long-term operational flaws.

When modeling your financial returns, factor in round-trip efficiency losses. A system operating at 85% efficiency loses 15% of the power it ingests. Over a decade, that lost power represents thousands of dollars. Similarly, account for HVAC parasitic loads. Cooling the batteries consumes electricity, which diminishes your net savings. Finally, aggressively model projected capacity degradation. Battery cells lose retention capacity over a 10-15 year lifecycle. A cheap system that degrades by 30% in five years will severely underperform your initial financial projections.

Implementation Realities and Deployment Risks

Securing the right hardware is only half the battle. Actual field deployment introduces a host of external variables. Planning for these realities prevents cost overruns and missed commissioning deadlines.

Interconnection and Permitting Hurdles

Connecting a massive power unit to the local grid requires permission. Grid interconnection studies often take months. Utilities must verify that your system will not destabilize their local infrastructure. Simultaneously, gaining approval from the local Authority Having Jurisdiction (AHJ) involves intense fire code reviews. These bureaucratic hurdles routinely take longer than the actual equipment procurement and physical construction.

Supply Chain & Lead Times

Global demand for electrification hardware outpaces supply. Securing Tier-1 battery cells requires patience. More pressingly, lead times for step-up transformers and specialized switchgear often exceed 50 weeks. We highly recommend early vendor engagement. Finalize your engineering designs rapidly so you can place equipment orders well before you break ground.

Warranty Caveats and Performance Guarantees

Commercial warranties dictate your long-term risk exposure. Buyers must instruct their legal counsel to scrutinize the "End of Life" (EOL) retention clauses. What capacity does the manufacturer guarantee at year ten?

Red flag: Pay close attention to operating conditions. Many aggressive warranties require you to maintain unrealistic ambient temperatures around the battery cabinets. If you operate the system in a hot environment and fail to meet their strict cooling requirements, the manufacturer can instantly void your performance guarantee. Always negotiate practical, real-world warranty terms.

Conclusion

An ESS acts as a dynamic, intelligent asset that fundamentally alters how your facility interacts with the power grid. Securing operational resilience requires tight alignment between hardware capabilities and your specific energy profiles.

To move forward effectively, consider the following action-oriented next steps:

  • Initiate a load profile analysis: Gather 15-minute interval data from your utility provider. This data reveals your exact peak demand spikes, dictating the necessary kW sizing.
  • Request a vendor feasibility study: Engage reputable integrators to perform a site walk. They will assess spatial constraints, transformer limits, and ideal interconnection points.
  • Evaluate available tax credits: Finalize your financial model by applying regional incentives and federal programs, such as the IRA Investment Tax Credit (ITC), which drastically reduces upfront burdens.

FAQ

Q: How long do commercial energy storage systems last?

A: Most commercial installations feature a lifespan of 10 to 15 years. However, this duration depends heavily on the cycle depth and thermal management. Frequent deep discharges accelerate degradation curves. Routine maintenance and maintaining optimal cell temperatures ensure the system reaches its maximum projected lifecycle.

Q: What is the round-trip efficiency of a battery energy storage system?

A: Standard commercial systems operate within an 85% to 90% round-trip efficiency range. The remaining 10% to 15% loss primarily occurs during the AC-to-DC and DC-to-AC conversion processes. Additionally, the system uses some internal power to run the HVAC and Battery Management Systems.

Q: Can an ESS operate entirely off-grid?

A: It depends on the specific architecture. Standard grid-tied systems designed for peak shaving usually shut down during a blackout to protect line workers. To operate off-grid during an outage, the system must feature microgrid or islanding capabilities, requiring specialized isolation switches and advanced inverters.

Q: How much physical space does a commercial ESS require?

A: Space requirements vary significantly based on capacity. Small modular cabinets may fit against an exterior wall. Larger containerized units require dedicated outdoor concrete pads. Crucially, you must factor in fire code setback requirements, which mandate specific distances between the battery containers, building structures, and property lines.
