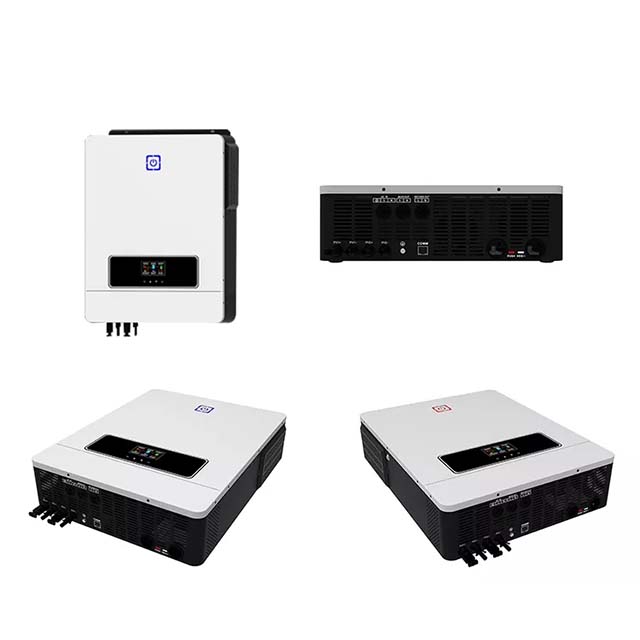

NEXTPOWER Factory Pure Sine Wave 220-240VAC Output High Frequency on/off Grid Victor NM MAX 10.2KW Solar Inverter

Features:
  • Pure sine wave solar inverter(on/off Grid)
  • Output power factor 1.0
  • WIFI&GPRS available for lOS and Android Inverter can run without battery
  • One-key restoration to factory Settings
  • Built-in Lithium battery automatic activation
  • Built-in 160A MPPT solar charger (for 8.2kw , 10.2kw) , 140A(for 7.2kw)
  • High PV input voltage range (90-500VDC)
  • Built-in anti-dust kit for harsh environment
  • Smart battery charge design to optimize battery life
  • Dual output
  • Touch button
  • On / Off Grid Work Mode
Availability:
Quantity:
Inquire Add to Basket

MODEL VICTOR MAX-7.2KW VICTOR MAX-8.2KW VICTOR MAX-10.2KW
Maximum PV Input Power 8200W 8200W 10200W
Rated Output Power 7200W/7200VA 8200W/8200VA 10200W/10200VA
Maximum Solar Charging 140A 160A 160A
GRID-TIE OPERATION
PV Input(DC)

Nominal DC Voltage /

Maximum DC Voltage

                  360VDC/500VDC

Start-up Voltage/

Initial Feeding Voltage

                    90VDC/120VDC
MPPT Voltage Range                     90VDC~450VDC

Number of MPPT Trackers

Maximum Input Current

                     1/27A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195~253VAC
Nominal Output Current 31.3A 35.6A 44.3A
Power Factor >0.99
Feed-in Grid Frequency Range 49~51±1HZ
EFFICIENCY
Maximum Conversion Efficiency (DC / AC) 98%

detail 2
