As distributed energy resources proliferate, local utilities and Distribution Network Operators enforce strict interconnection rules. Uncontrolled grid feed-in is a liability rather than a benefit. System designers and homeowners face a critical balancing act. You must maximize solar generation and battery utilization while strictly adhering to utility-mandated export limits. Failing to configure these settings correctly leads to denied interconnection agreements, grid instability, or financial penalties.

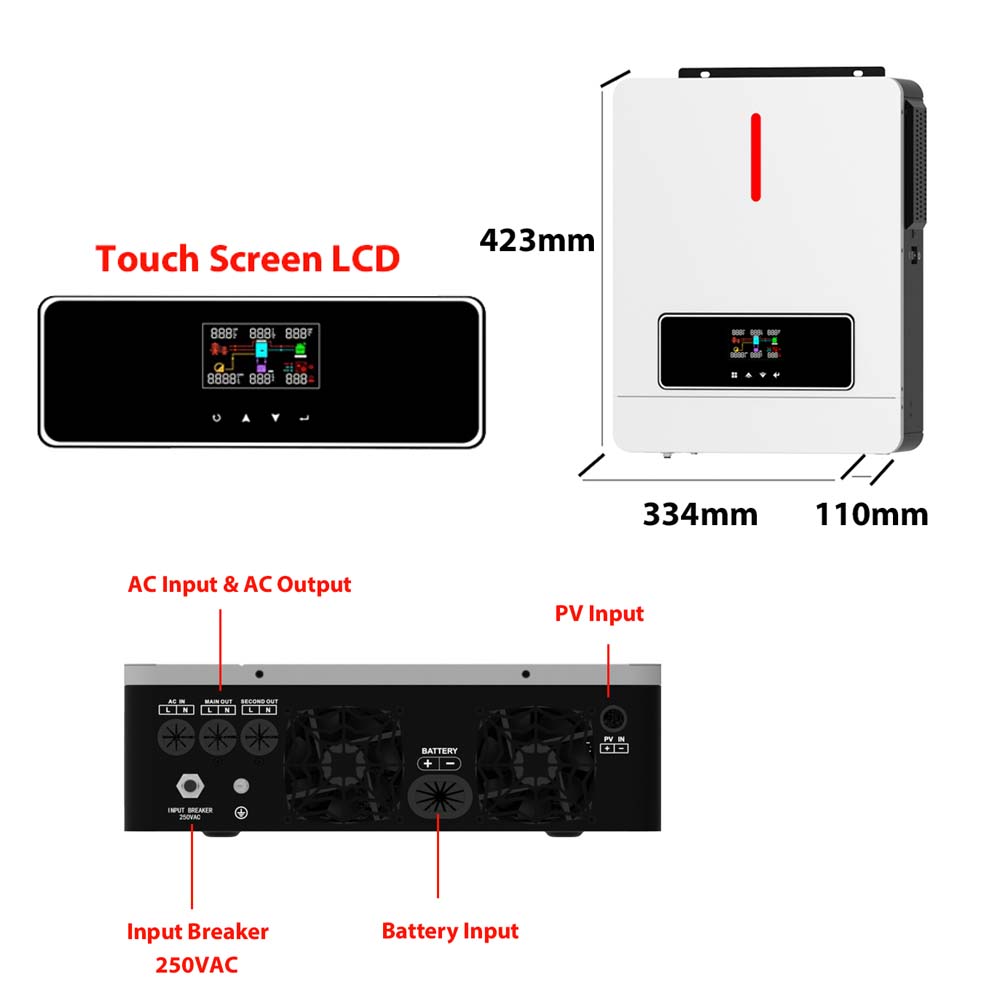

Meeting these requirements requires a deep understanding of Power Control Systems. This guide breaks down the essential export control settings required in a modern On Off Grid Solar Inverter. We cover how to evaluate hardware capabilities, configure software limits, and ensure strict compliance without sacrificing system returns.
Grid export involves complex physical dynamics on local distribution networks. When multiple homes on a single street push solar power back into the grid simultaneously, it causes localized voltage rise. If the voltage exceeds utility thresholds, typically around 253V on a standard split-phase system, inverters will trip offline to protect household appliances. Distribution Network Operators manage these delicate power flows by setting finite capacity limits for specific grid sectors.
Export control settings serve as the primary mechanism to secure interconnection approvals in grid-congested areas. Utilities calculate the thermal limits of neighborhood transformers. If a 50kVA transformer serves ten homes, the utility cannot allow 100kW of combined solar export. Active export management ensures your system remains a grid asset. It throttles production dynamically, keeping the local transformer within safe operating temperatures and preventing catastrophic equipment failure.
Many property owners believe capping grid export means losing valuable solar generation. The reality is quite different in modern installations. A properly configured on off grid inverter does not simply throw away power by shutting down the panels. Instead, it shifts the Maximum Power Point Tracking (MPPT) operating point to match the exact load requirements.
When the system hits an export limit, it dynamically redirects excess DC generation. The system charges the battery bank first. Once the batteries reach 100% State of Charge (SOC), the inverter can route power to smart household loads, like electric vehicle chargers or heat pump water heaters. This approach minimizes actual energy waste and maximizes onsite self-consumption, keeping your generated power working for your property rather than spilling onto the grid for pennies.
Traditional net-metered systems operate with dumb power flow. They send all excess power to the grid regardless of local network conditions. Modern PCS-managed systems operate with intelligent, real-time throttling. They monitor the main electrical panel continuously and adjust solar production based on active grid conditions.
Certified PCS capabilities help homeowners avoid costly electrical upgrades. Under National Electrical Code (NEC) 705.13, a certified PCS can electronically limit the current backfed into a main panel. This guarantees the combined solar and battery output never exceeds the existing busbar ratings. Using software-defined limits satisfies utility safety inspectors and allows you to install larger solar arrays without paying for a $3,000 Main Panel Upgrade.
The Zero Export setting matches solar production exactly to real-time household consumption. The inverter dynamically curtails the solar array when generation exceeds the house load and batteries are full. The system monitors current flow continuously at the main breaker. If the house load drops suddenly—for example, when an air conditioner turns off—the inverter adjusts its PWM signal to the internal IGBTs within milliseconds to drop the AC output.
Ideal use cases include off-grid systems temporarily tied to the grid for backup charging, or regions where utilities prohibit grid feed-in entirely. This setting ensures absolute zero reverse power flow, keeping the utility meter from registering any exported kilowatt-hours.
You can configure a hard cap for your system based on your interconnection agreement. A 3kW maximum export limit applies regardless of your total array capacity. The inverter calculates the delta between the house load and solar generation. It maintains the exact utility-mandated export threshold continuously.
For example, if your array produces 10kW and your house consumes 2kW, the inverter will output 5kW total. It sends 2kW to the house and 3kW to the grid. The remaining 5kW of potential DC power is either stored in the battery or curtailed. This allows you to monetize some excess power safely without triggering utility grid-protection relays.
Export control menus often include grid import limits. These are equally critical for overall system stability. Capping grid import prevents the hybrid grid solar inverter from drawing excessive power from the utility.
If you have a 100A main service panel and your inverter can charge batteries at 100A, a rapid charging cycle combined with normal house loads will trip the main breaker. By setting a strict import limit of 40A in the inverter software, the system will automatically throttle battery charging when house loads spike. You maintain predictable energy draws and prevent nuisance breaker trips.
There is a distinct difference between exporting PV generation and exporting stored energy. Default solar-only settings prevent premature battery degradation. They stop unnecessary grid discharge cycles, ensuring your lithium iron phosphate (LiFePO4) cells retain their cycle life for backup power and self-consumption.
However, battery-to-grid export is highly desirable in specific scenarios. Virtual Power Plants (VPPs) reward this behavior during grid emergencies. Peak demand response programs also require battery export to stabilize the grid. You must configure permissions in the inverter menu to allow battery discharge to the grid, often setting a minimum SOC floor (e.g., 20%) to ensure you still have reserve power for unexpected outages.
You can map export control settings to Time-of-Use utility rates. Scheduled export limits optimize your financial returns by aligning power flow with utility pricing structures. The system holds power in the batteries during low-value daytime hours when solar is abundant and grid prices are cheap.
It then allows limited or maximum export during high-value evening peaks when utility rates triple. This shifting strategy maximizes your energy credits. It requires precise clock synchronization within the inverter interface and accurate programming of the utility's seasonal rate schedules.
| Control Mode | Primary Function | Best Use Case | Grid Feed-In Level |
|---|---|---|---|
| Zero Export | Matches production to exact household load | Strict utility non-export zones | 0 kW |
| Limited Export | Caps feed-in at a specific wattage | Constrained local transformers | User-defined limit |
| TOU Export | Schedules export based on time blocks | Variable rate utility tariffs | Dynamic based on time |
| Import Limit | Caps power drawn from the utility grid | Preventing main breaker trips | N/A (Import only) |
Internal inverter data is insufficient for proper export control. The inverter only knows what it produces, not what the house consumes. External measurement at the main electrical panel is required. Current Transformers (CTs) measure power flow accurately by clamping around the main service feeders.
Inline smart meters offer an alternative data collection method. While CTs are split-core and easy to retrofit without disconnecting main power, inline meters require cutting the main feeders and routing them through the meter block. You must evaluate sensor accuracy classes carefully. Stringent utility regulations demand precise hardware. Class 1.0 (1% margin of error) or Class 0.5 (0.5% margin of error) meters are typically required to prevent compliance failures.
Response time is a highly critical metric measured in milliseconds. When a large household load drops, the inverter must react instantly. If a 4kW electric oven turns off, the inverter is suddenly producing 4kW too much power. It must instantly curtail production to prevent an export spike to the grid.
Different inverter brands handle step-changes in load differently. Fast response (under 250 milliseconds) prevents tripping utility grid-protection relays. Sluggish software takes several seconds to adjust, leading to continuous grid faults and potential fines from the utility. Field testing the response time during commissioning is a standard requirement for PCS certification.
Communication cables between the CT sensor and inverter can fail due to rodent damage, loose terminals, or electrical interference. The inverter must behave predictably if the RS485 signal is severed. Fail-safe to zero requirements are mandatory in most jurisdictions.
If the inverter loses communication with the meter, the system must default to zero export immediately. Alternatively, it must physically open its internal contactors and disconnect from the grid entirely. This maintains strict utility compliance and protects the local transformer from unexpected surges when the inverter is flying blind.
Export controls are bypassed entirely when the grid goes down. The system islands itself automatically by opening the main grid relay. A backup load solar inverter shifts operational modes, moving from a grid-following current source to a grid-forming voltage source. It establishes a stable 60Hz, 240V microgrid to power critical loads safely.
AC coupling has specific implications during off-grid operation. If you have secondary microinverters on the backup panel, the hybrid inverter cannot send their excess power to the utility grid. Instead, it uses active frequency shifting. It bumps the microgrid frequency from 60.0Hz to 60.5Hz or higher. This signals the microinverters to throttle down or shut off completely, preventing battery overcharging during outages.
Strict export limits force a change in system design. You must prioritize maximum self-consumption to get a return on your solar investment. Integrating smart loads acts as a reliable energy sink when the batteries are full and the grid export limit is reached.
Installers use dry contacts on the inverter to trigger external relays. These relays activate heavy loads like EV chargers, pool pumps, and water heaters. They turn on automatically when export limits are reached, absorbing the excess DC power. This maximizes the value of your generated solar power and reduces reliance on grid imports later in the day.
Installing CT sensors backward is the most common field failure. Placing them on the wrong phase also causes critical errors. If Phase A CT is on Phase B wire, the inverter calculates power flow incorrectly. The inverter may import heavily when it should export, or vice versa.
You need a solid mitigation framework during installation. Use comprehensive commissioning checklists. Verify phase rotation manually with a multimeter. Validate real-time monitoring before calling for the utility inspection. Proper wiring ensures accurate data collection and prevents failed inspections.
Utility regulations often change after initial installation. A region with favorable net metering may transition to strict export caps overnight. Over-The-Air (OTA) firmware update capabilities are necessary to keep the system compliant.
OTA updates push new grid profiles to the inverter remotely. This ensures ongoing compliance with changing voltage trip limits and export rules. You avoid costly site visits from technicians. Software flexibility future-proofs your energy investment against shifting utility policies.
Select equipment with pre-certified grid profiles. UL 1741 SB and IEEE 1547-2018 are standard requirements for modern grid interconnection. Without these certifications, utilities will reject the application outright.
Generate necessary PCS compliance reports easily through the manufacturer's monitoring platform. Submit them from the inverter's portal directly to the utility. This satisfies utility interconnection audits smoothly. Proper documentation accelerates your permission to operate and prevents bureaucratic delays.
Export control settings are foundational to grid compliance and system stability. The ability to precisely manage power flow dictates the viability of your installation. Modern solar-plus-storage installations rely entirely on these configurations to navigate congested utility networks. When evaluating equipment, prioritize models with high-accuracy CT metering, rapid PCS response times, and granular export permissions. Robust fail-safe mechanisms are equally important for long-term safety and compliance.
Take these actionable steps to ensure a compliant installation:
A: Zero export is a strict configuration where the inverter dynamically throttles solar production to match household consumption exactly. It ensures zero watts flow back into the utility grid. This is achieved by continuously monitoring loads via sensors and adjusting the solar output in real time.
A: Yes. By utilizing external CT sensors at the main panel, the inverter can be programmed to operate in a permanent non-export mode. It remains grid-tied for import purposes but physically prevents any generated power from feeding back into the utility lines.
A: Utility-compliant inverters feature a fail-safe mechanism. If the communication cable between the sensor and the inverter is severed, the system will automatically default to zero export. In some cases, it will physically disconnect from the grid to ensure strict compliance.
A: No. Export limits only govern power flowing out to the utility grid. They do not restrict your system's ability to charge the battery bank or power your home's critical loads during an outage. Your backup capacity remains fully functional.
A: Modern Power Control Systems must respond within milliseconds. When a large household appliance turns off, the inverter must instantly curtail solar production to prevent a sudden surge of power from breaching the mandated export limit before the utility meter registers it.
A: Yes, if your utility allows it. You can configure system export permissions to allow battery discharge to the grid. This is often used for Virtual Power Plants or Time-of-Use optimization, though default settings usually restrict export to solar-only to preserve battery life.
